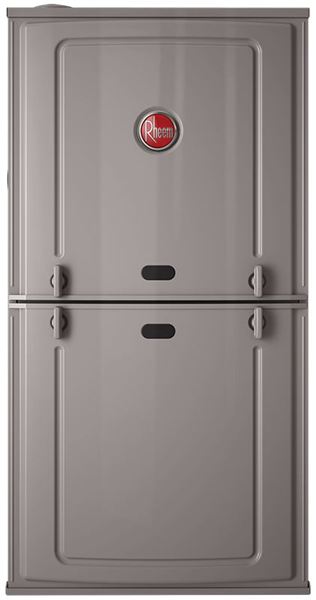

  • R801T---Endeavor--Line-Classic---Series-Gas-Furnaces
  • PlusOne® Diagnostics: Industry-first, 7-segment LED for quick & easy service
  • PlusOne® Ignition System: Proven Direct Spark Ignition (DSI) for reliability and longevity
  • Low Profile, 34-inch Cabinet: Makes our furnaces ideal for space-constrained installations
  • Hemmed Cabinet & Door Edges and Quarter-Turn Door Fasteners (Upflow/Horizontal only): Allows for safe, toolless access and serviceability
  • Removable Heat Exchanger: Improves serviceability. Aluminized steel construction provides maximum corrosion resistance and thermal fatigue reliability

Go to Specification Sheet

1 - 10 of 10 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Input

Heating Capacity

Motor H.P.

Approx. Shipping Weight

N/A 50000 Btu/h15 kW N/A 40000 Btu/h12 kW N/A 1/2 hp373 W N/A 49 kg108.5 lb
N/A 75000 Btu/h22 kW N/A 60000 Btu/h18 kW N/A 3/4 hp559.5 W N/A 55 kg120.5 lb
N/A 75000 Btu/h22 kW N/A 60000 Btu/h18 kW N/A 3/4 hp559.5 W N/A 58 kg128.5 lb
N/A 100000 Btu/h29 kW N/A 80000 Btu/h23 kW N/A 3/4 hp559.5 W N/A 63 kg140.0 lb
N/A 125000 Btu/h37 kW N/A 100000 Btu/h29 kW N/A 1 hp746 W N/A 68 kg151.0 lb
N/A 50000 Btu/h15 kW N/A 40000 Btu/h12 kW N/A 1/2 hp373 W N/A 49 kg108.5 lb
N/A 75000 Btu/h22 kW N/A 60000 Btu/h18 kW N/A 3/4 hp559.5 W N/A 55 kg120.5 lb
N/A 75000 Btu/h22 kW N/A 60000 Btu/h18 kW N/A 3/4 hp559.5 W N/A 58 kg128.5 lb
N/A 100000 Btu/h29 kW N/A 80000 Btu/h23 kW N/A 3/4 hp559.5 W N/A 63 kg140.0 lb
N/A 125000 Btu/h37 kW N/A 100000 Btu/h29 kW N/A 1 hp746 W N/A 68 kg151.0 lb
