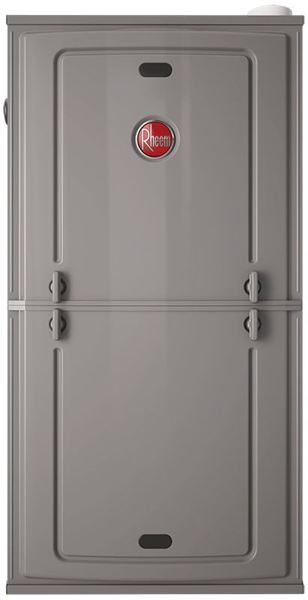

  • R921T---Endeavor--Line-Classic---Series-Gas-Furnaces
  • PlusOne® Energy Efficiency: ENERGY STAR® (South) certified, featuring 92% AFUE across all model sizes
  • PlusOne® Diagnostics: Industry-first, 7-Segment LED for quick and easy service
  • PlusOne® Ignition System: Proven Direct Spark Ignition (DSI) for reliability and longevity
  • PlusOne® Water Management System: Rheem-exclusive patented block drain sensor that automatically shuts off the furnace when the drain is blocked and alerts the contractor via diagnostic code

Go to Specification Sheet

1 - 7 of 7 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Input

Heating Capacity

Motor H.P.

Approx. Shipping Weight

N/A 42000 Btu/h12.30 kW N/A 39000 Btu/h11.69 kW N/A 1/2 hp373 W N/A 56 kg123 lb
N/A 56000 Btu/h16.41 kW N/A 53200 Btu/h15.59 kW N/A 1/2 hp373 W N/A 58 kg128 lb
N/A 70000 Btu/h20.51 kW N/A 66500 Btu/h19.49 kW N/A 1/2 hp373 W N/A 61 kg133.5 lb
N/A 70000 Btu/h20.51 kW N/A 66500 Btu/h19.49 kW N/A 1 hp746 W N/A 66 kg146.5 lb
N/A 84000 Btu/h24.61 kW N/A 79800 Btu/h23.39 kW N/A 1 hp746 W N/A 68 kg150 lb
N/A 98000 Btu/h28.72 kW N/A 93100 Btu/h27.28 kW N/A 1 hp746 W N/A 70 kg155 lb
N/A 112000 Btu/h32.82 kW N/A 106400 Btu/h31.18 kW N/A 1 hp746 W N/A 86.2 kg190 lb
