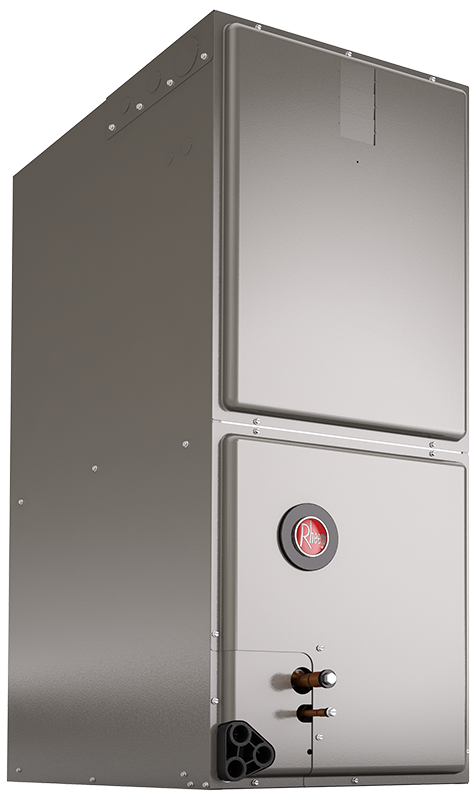

RH1AY - Endeavor® Line Air Handlers On Rheem Manufacturing Company

Quiet Operation¹: Provided by a cabinet construction with 1.0 inch of foil faced insulation for quieter sound characteristics
Aluminum Indoor Coil Design: Constructed of aluminum fins bonded to internally grooved aluminum tubing and are more corrosion resistant
Versatile 4-Way Convertible Compact Design: Allow for upflow, downflow, horizontal left and horizontal right applications even in the smallest of spaces
Field Installed Auxiliary Heater Kits: Provide exact heat for indoor comfort and include circuit breakers which meet UL and cUL requirements for service disconnect
Limited Warranty*: Conditional Parts: 10 Years (registration required)

¹Based on manufacturer’s air handler offering, and the product’s airflow stages, motor type and cabinet insulation. Sound levels are also dependent on air handler location and installation.
*For complete details of the limited and conditional warranties, including applicable terms and conditions, contact your local Contractor or go to Rheem.com for a copy of the product warranty certificate.

Item #	Nominal Capacity	Voltage	Coil Series	Width	Weight
RH1AY2417STANNJ	N/A 24000 Btu/h7.03 kW	N/A 208 to 240 V	N/A N Coil	N/A 17 1/2 in445 mm	N/A 92 lb42 kg
RH1AY2417STANNJL	N/A 24000 Btu/h7.03 kW	N/A 208 to 240 V	N/A N Coil	N/A 17 1/2 in445 mm	N/A 92 lb42 kg
RH1AY3617STANNJ	N/A 36000 Btu/h10.55 kW	N/A 208 to 240 V	N/A N Coil	N/A 17 1/2 in445 mm	N/A 96 lb44 kg
RH1AY3617STANNJL	N/A 36000 Btu/h10.55 kW	N/A 208 to 240 V	N/A N Coil	N/A 17 1/2 in445 mm	N/A 96 lb44 kg
RH1AY3621STANNJ	N/A 36000 Btu/h10.55 kW	N/A 208 to 240 V	N/A N Coil	N/A 21 in533 mm	N/A 111 lb50 kg
RH1AY3621STANNJL	N/A 36000 Btu/h10.55 kW	N/A 208 to 240 V	N/A N Coil	N/A 21 in533 mm	N/A 111 lb50 kg
RH1AY4821STANNJ	N/A 48000 Btu/h14.07 kW	N/A 208 to 240 V	N/A N Coil	N/A 21 in533 mm	N/A 128 lb56 kg
RH1AY4821STANNJL	N/A 48000 Btu/h14.07 kW	N/A 208 to 240 V	N/A N Coil	N/A 21 in533 mm	N/A 128 lb56 kg
RH1AY6021STANAJ	N/A 60000 Btu/h17.58 kW	N/A 208 to 240 V	N/A A Coil	N/A 21 in533 mm	N/A 139 lb63 kg
RH1AY6021STANAJL	N/A 60000 Btu/h17.58 kW	N/A 208 to 240 V	N/A A Coil	N/A 21 in533 mm	N/A 139 lb63 kg
RH1AY6024STANNJ	N/A 60000 Btu/h17.58 kW	N/A 208 to 240 V	N/A N Coil	N/A 24 1/2 in622 mm	N/A 161 lb73 kg
RH1AY6024STANNJL	N/A 60000 Btu/h17.58 kW	N/A 208 to 240 V	N/A N Coil	N/A 24 1/2 in622 mm	N/A 161 lb73 kg
